Hyundai Santa Cruz: Body Side Molding / Door Garnish

- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.

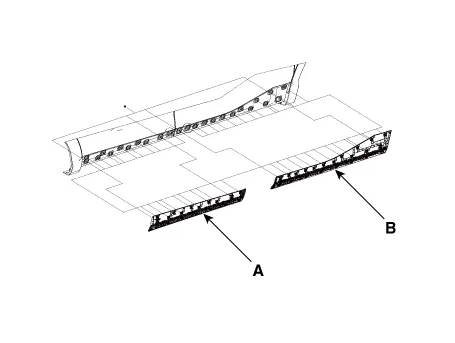

1.Loosen the mounting nuts, remove the front door garnish (A) and rear door garnish (B).

Tightening torque :1.6 - 2.2 N.m (0.16 - 0.22 kgf.m, 1.2 - 1.6 lb-ft)

2.To install, reverse the removal procedure.



• Replace any damaged clips (or pin-type retainers).
