Hyundai Santa Cruz: Surround View Monitor (SVM) / Description and Operation

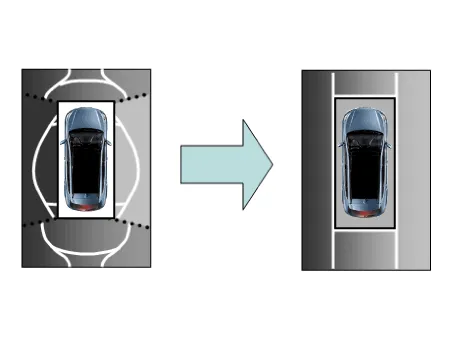

- Description Surround View Monitor (SVM) is the system that allows video monitoring of 360 degrees around the vehicle. The video from these cameras are applied with distortion compensation, time point conversion, and video merging technologies to provide sky-view image of the vehicle's surrounding area, as well as various other view modes.The SVM System provides video feed of the vehicle's surrounding area while parking or during low speed driving to the driver to enhance safety and driver's convenience.In addition, the system also displays video image of vehicle's surrounding area, and includes steering wheel synchronized guide line indication, front and rear object warning, and A/S (including In-Line) tolerance compensation features.

It's a system that displays the video, from ultra optical cameras mounted on 4 sides of the vehicle, on the Head Unit Screen. It shows 360 degrees sky-view image of the vehicle's surrounding area, as well as various other view modes. The SVM System provides video feed of the vehicle's surrounding area while the vehicle is parked or during low speed driving to the driver to enhance safety and driver's convenience.Blind-spot View Monitor (BVM) Blind- spot View Monitor (BVM) is a driving safety system that helps provide a more comprehensive views on areas which is not usually visible by the side mirrors when the vehicle tries to change the lane.

The BVM system provides a driver a more comprehensive view which is not usually visible by the side mirrors in certain situations like swithing drive lanes. The system helps to avoid any blind spot mishaps.

– The rear side view is displayed in the cluster screen when the turning lights are in operation as the turn signal light switch goes up and down by the driver.

– The SVM also provides an edited view of the left side/ right side without adding more cameras.

– It helps minimize the distraction of the driver by displaying the rear side view that is usually hard to see.

    Surround View Monitor (SVM)
    ...

    Troubleshooting
    - Troubleshooting     1)After replacing controller, always check that the system operates properly. 2)If the failure persists after replacing the controller, do not replace the con ...
