Hyundai Santa Cruz: Lighting System / Daytime Running Light (DRL)

- Removal

1.Disconnect the negative (-) battery terminal.

2.Remove the front bumper assembly.(Refer to Body - "Front Bumper Assembly")

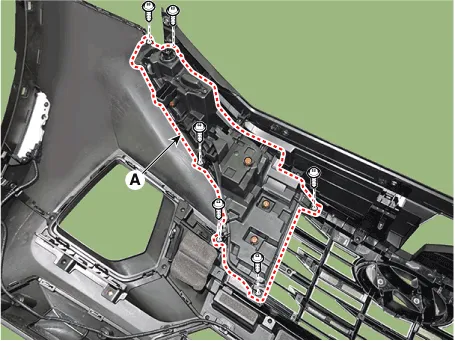

3.Loosen the mounting screws and remove the daytime running light (A).

- Installation

1.Install the daytime running light and connect the connector.

2.Connect the negative (-) battery terminal.

- Replacement

Moisture absorbent of the head lamp

1.Remove the Daytime Running Light (DRL).

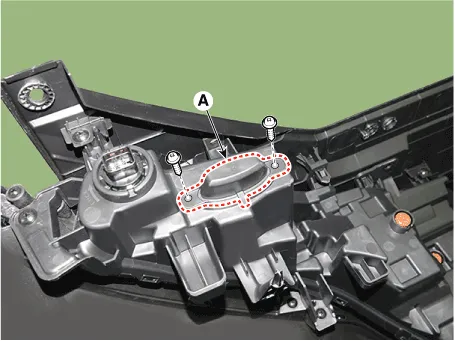

2.Loosen the mounting screws and remove the dust cap (A).

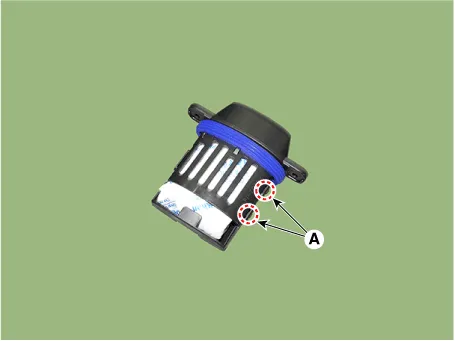

3.Push the lock pin (A) and open the dust cap cover.

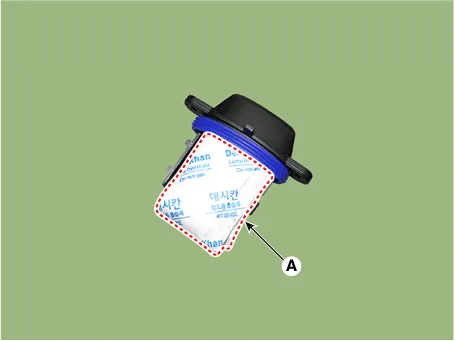

4.Replace the moisture-absorbing agent (A).

    Head Lamps
    - Removal 1.Disconnect the negative (-) battery terminal. 2.Remove the front bumper assembly.(Refer to Body - "Front Bumper Assembly") 3.Disconnect the head lamp connector (A). 4.Loosen the ...

    Side Mark Lamp
    - Removal 1.Disconnect the negative (-) battery terminal. 2.Remove the front bumper assembly.(Refer to Body - "Front Bumper Assembly") 3.Disconnect the side mark lamp connector (A). 4.Loosen ...
