Hyundai Santa Cruz: Crash Pad / Crash Pad Under Cover

- Replacement



• When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

• Put on gloves to protect your hands.



• Take care not to bend or scratch the trim and panels.

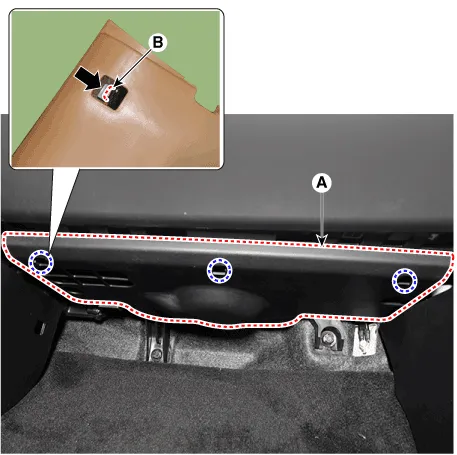

1.Press the lock pin (B) and then remove the crash pad under cover (A).

2.To install, reverse removal procedure.
