Hyundai Santa Cruz: Crash Pad / Crash Pad Air Vent

- Component Location

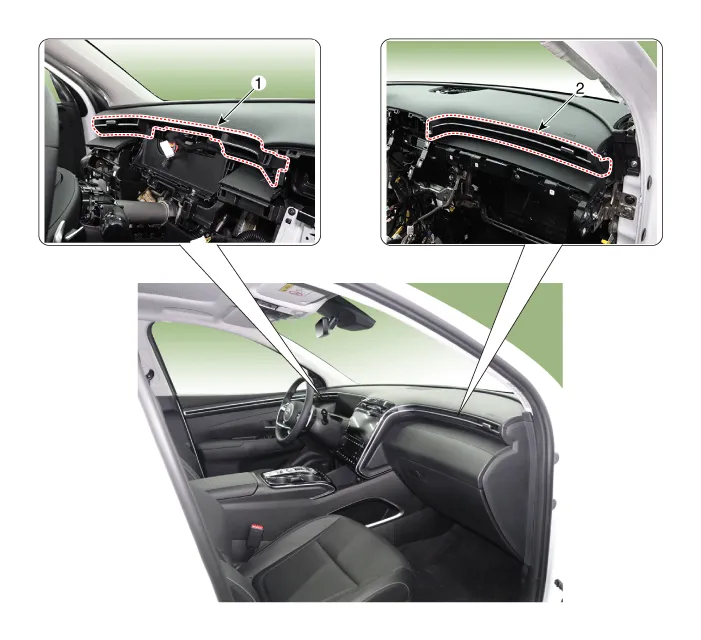

1. Crash pad air vent [LH]
2. Crash pad air vent [RH]


- Replacement

[LH]



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.



• Take care not to bend or scratch the trim and panels.

1.Disconnect the negative (-) battery terminal.

2.Remove the instrument cluster.(Refer to Body Electrical System - "Instrument Cluster")

3.Remove the front monitor.(Refer to Body Electrical System - "Front Monitor")

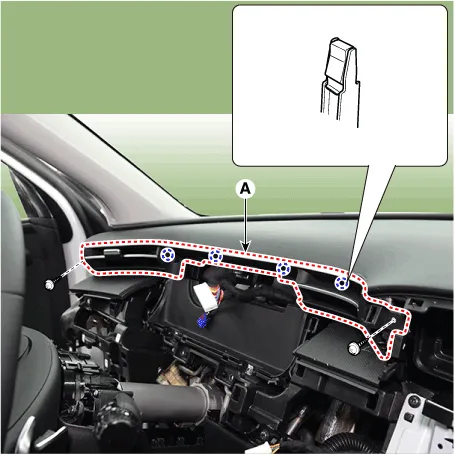

4.Loosen the mounting screw, remove the crash pad air vent[LH] (A).

5.Install in the reverse order of removal.



• Replace any damaged clips (or pin - type retainers).

[RH]



• When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.



• Take care not to bend or scratch the trim and panels.

1.Disconnect the negative (-) battery terminal.

2.Remove the crash pad side cover[RH].(Refer to Crash Pad - "Crash Pad Side Cover")

3.Remove the front monitor.(Refer to Body Electrical System - "Front Monitor")

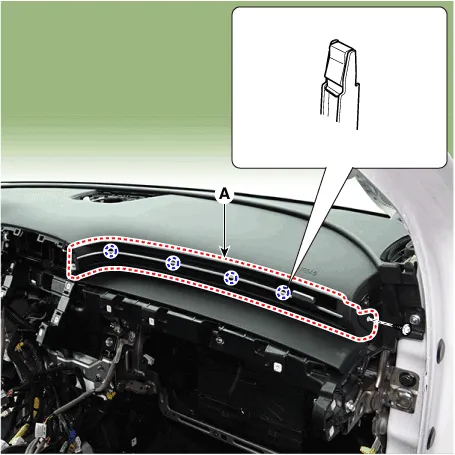

4.Loosen the mounting screw, remove the crash pad air vent[RH] (A).

5.Install in the reverse order of removal.



• Replace any damaged clips (or pin - type retainers).
