Hyundai Santa Cruz: Crankcase Emission Control System / Crankcase Check Valve

- Removal and Installation

1.Disconnect the battery (-) terminal.

2.Remove the engine room under cover.(Refer to Engine And Transaxle Assembly - "Engine Room Under Cover")

3.Remove the drive belt.(Refer to Drive Belt System - "Drive Belt")

4.Remove the compressor mounting bolts.(Refer to Heating, Ventilation and Air Conditioning - "Compressor")

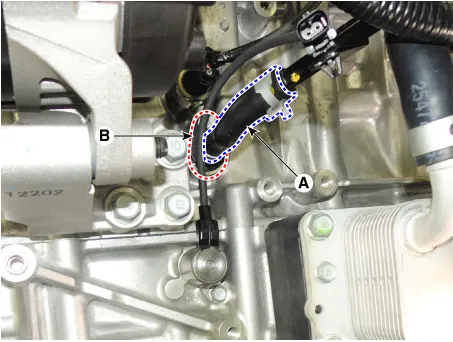

5.Disconnect the crankcase check valve hose (A) and then remove the crankcase check valve (B).

Tightening torque : 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)



• Push the check valve to the end of the mounting surface, and then tighten the bolt.
