Hyundai Santa Cruz: Smart Key System / Components and Components Location

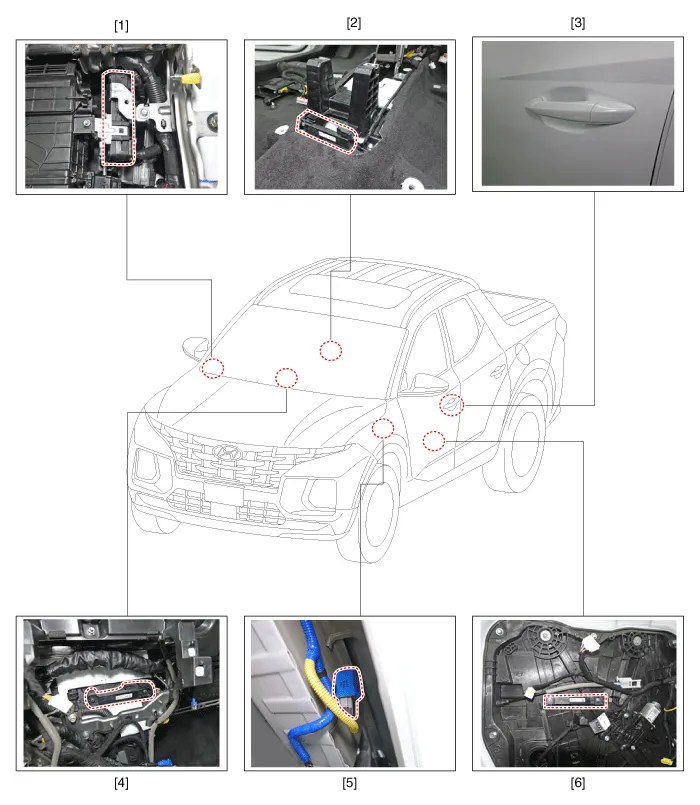

- Component Location (1)

1. Integrated body control unit (IBU)
2. Interior antenna 2
3. Door outside handle
4. Interior antenna 1
5. Buzzer
6. Door antenna

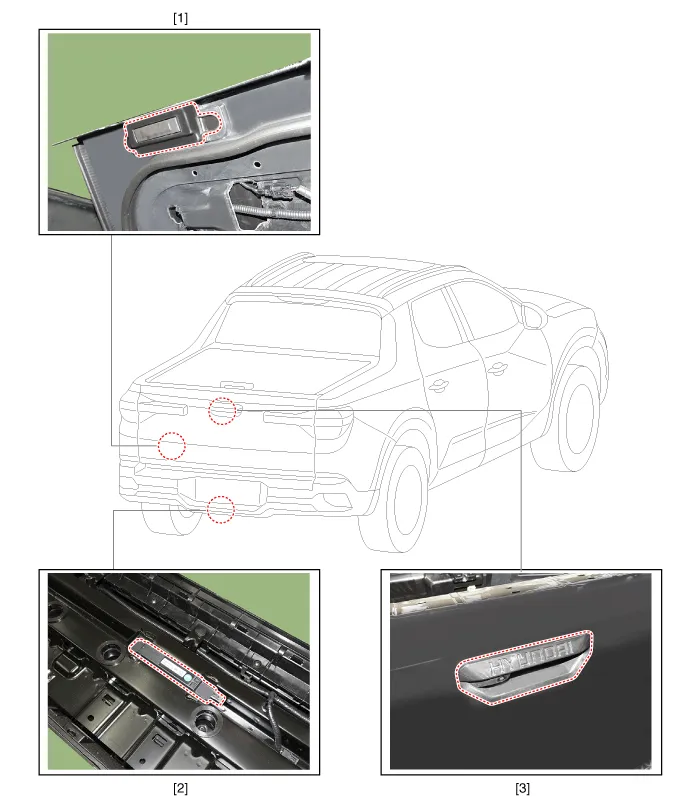

- Component Location (2)

1. Bed open switch
2. Rear bumper antenna
3. Liftgate open switch


    Smart Key System
    ...

    Specifications
    - Specifications Smart Key Unit (IBU) ItemsSpecification Rated voltageDC 12V Operating voltageDC 9 ~ 16V Operating temperature-30°C ~ 75°C LoadMax. 4.0mA (When welcome light function off)(2. ...
