Hyundai Santa Cruz: Horn / Components and Components Location

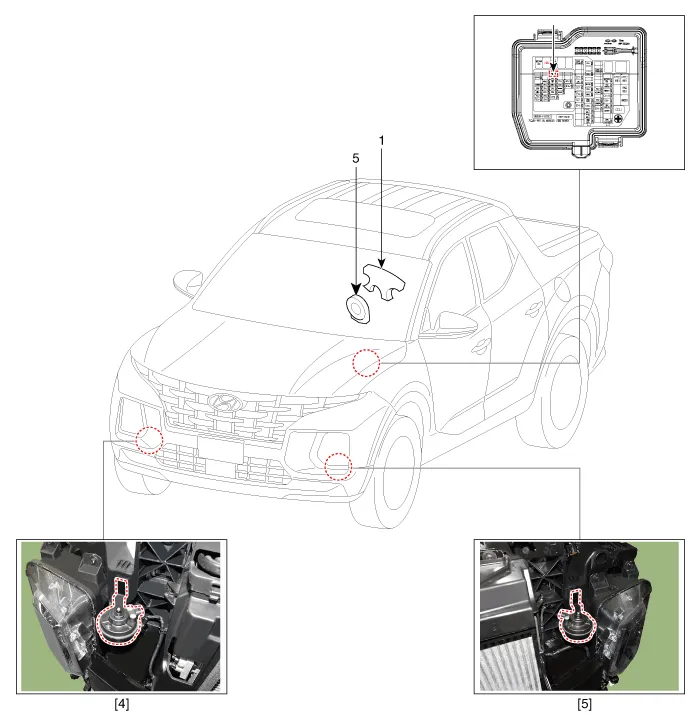

- Component Location

1. Horn switch
2. Horn relay
3. Horn (Low pitch)
4. Horn (High pitch)
5. Clock spring


    Horn
    ...

    Repair procedures
    - Removal 1.Remove the front bumper assembly.(Refer to Body - "Front Bumper Assembly") 2.Disconnect the horn connector (A).[High pitch] [Low pitch] 3.Loosen the mounting bolt and remove ...
