Hyundai Santa Cruz: Front Door / Components and Components Location

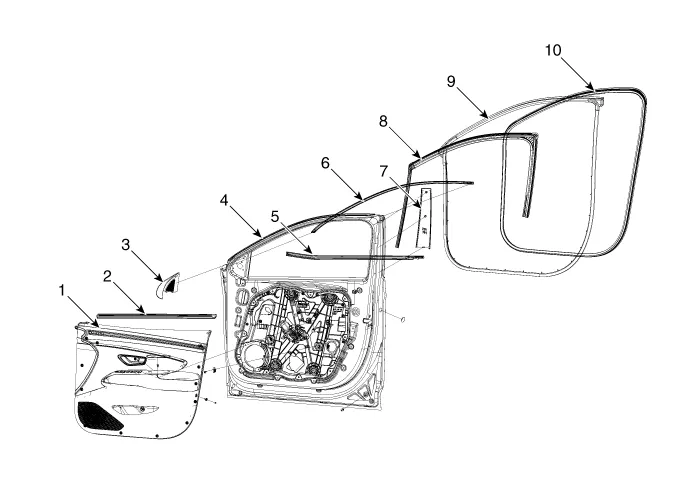

- Components

1. Front door trim
2. Front door belt inside weatherstrip
3. Front door quadrant inner cover
4. Front door module
5. Front door belt outside weatherstrip
6. Front door frame molding
7. Front door frame garnish
8. Front door window glass run
9. Front door side weatherstrip
10. Front door body side weatherstrip


    Front Door
    ...

    Repair procedures
    - Adjustment Glass Adjustment     • Check the glass run channel for damage or deterioration, and replace it if necessary. 1.Remove the front door trim.(Refer to Front Door - "F ...
