Hyundai Santa Cruz: Front Suspension System / Components and Components Location

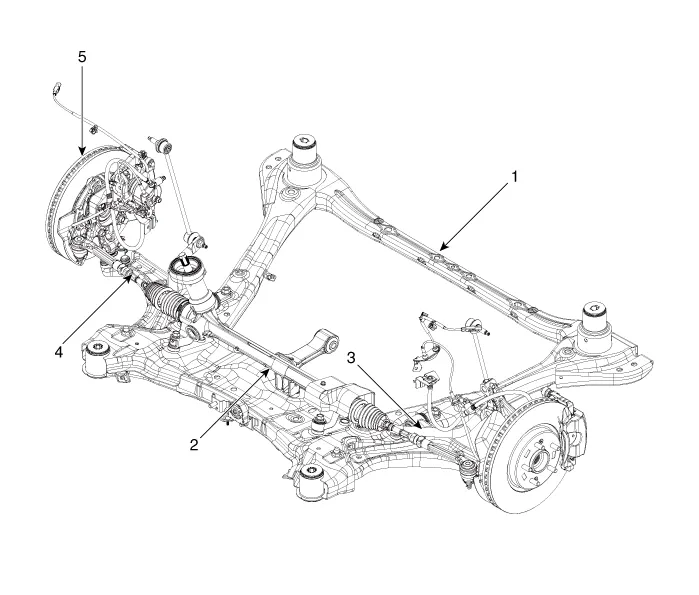

- Components Location

1. Front sub frame
2. Steering gear box
3. Front stabilizer bar
4. Front lower arm
5. Front knuckle assembly


    Front Suspension System
    ...

    Front Strut Assembly
    - Components 1. Strut assembly2. Spring lower pad3. Dust cover4. Coil spring5. Bumper rubber6. Insulator assembly & sturt bearing7. Lock nut8. Insulator cap - Removal     ...
