Hyundai Santa Cruz: Fuel Delivery System / Components and Components Location

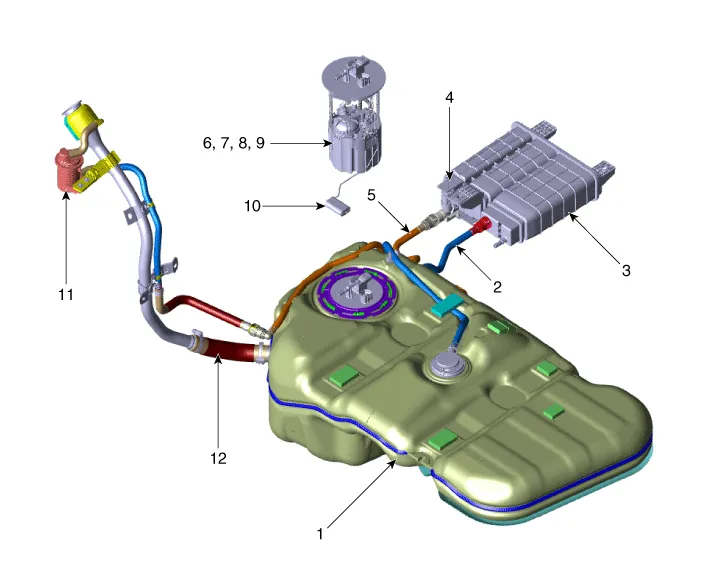

- Components Location [Fuel Tank]

1. Fuel tank
2. Vapor hose
3. Canister
4. Canister close valve (CCV)
5. Vent hose
6. Fuel pump
7. Fuel filter
8. Fuel pump motor
9. Fuel pressure regulator
10. Fuel level sender (FLS)
11. Fuel tank air filter
12. Fuel filler hose

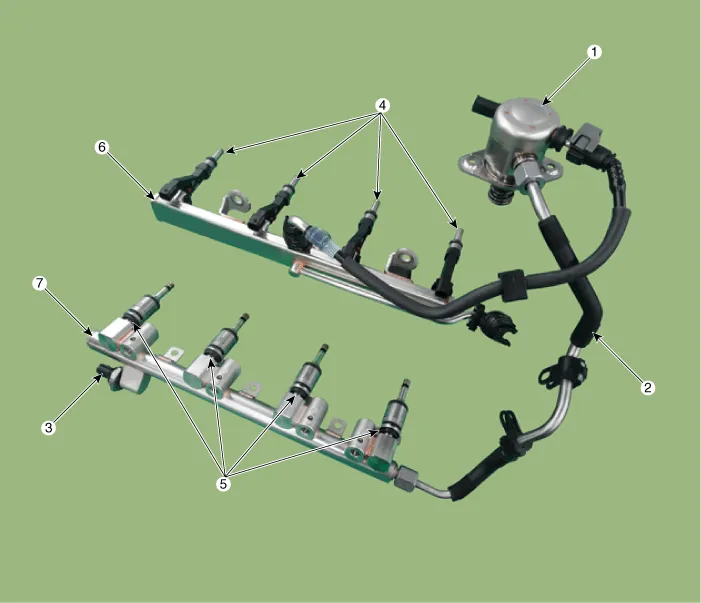

[High Pressure Fuel Line]

1. High Pressure Fuel Pump
2. High Pressure Fuel Pipe
3. Rail Pressure Sensor (RPS)
4. Low Pressure Fuel Injector
5. High Pressure Fuel Injector
6. Low Pressure Delivery Pipe
7. High Pressure Delivery Pipe


    Fuel Delivery System
    ...

    Fuel Pressure Test
    - Fuel Pressure Test 1.Release the residual pressure in fuel line.(Refer to Delivery System - "Release Residual Pressure in Fuel Line")     • When removing the fuel pump fuse, a Di ...
