Hyundai Santa Cruz: Crash Pad / Cluster Fascia Panel

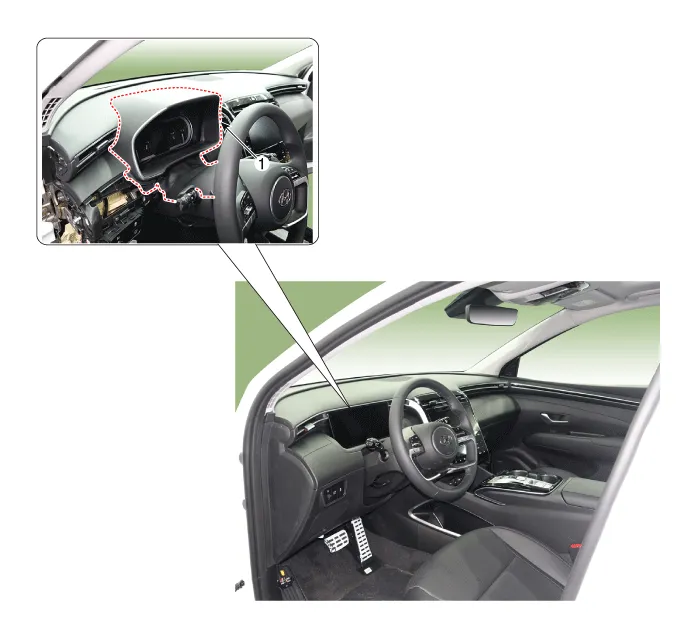

- Component Location [Supervision cluster]

1. Cluster fascia panel

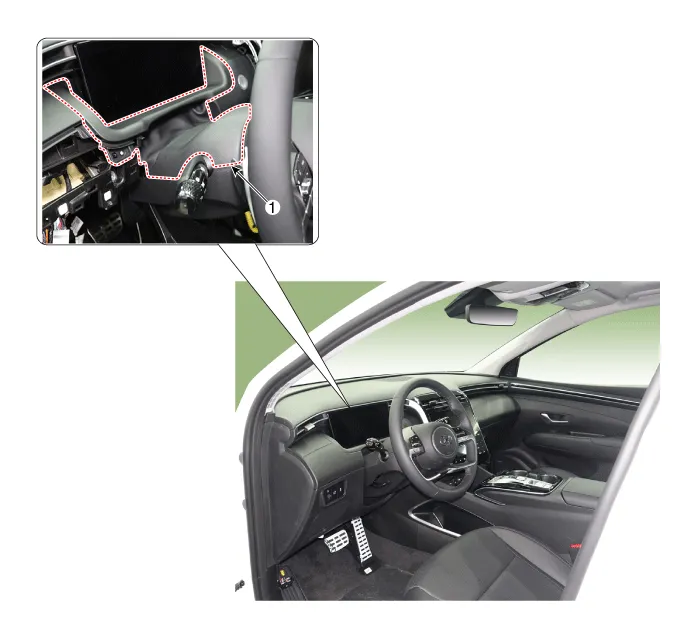

[General cluster]

1. Cluster fascia panel


- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.



• Take care not to bend or scratch the trim and panels.

1.Remove the crash pad garnish [LH].(Refer to Crash Pad - "Crash Pad Garnish")

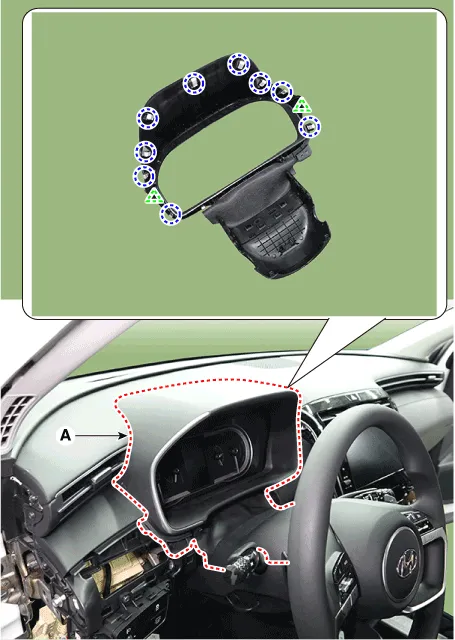

2.Loosen the mounting screw, remove the cluster fascia panel (A).[Supervision cluster]

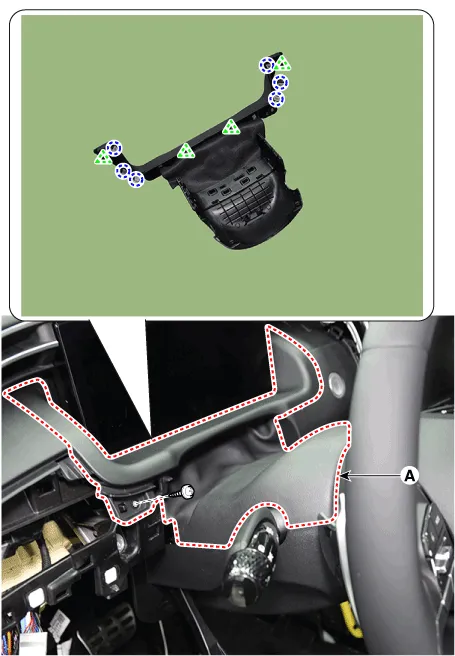

[General cluster]

3.To install, reverse the removal procedure.



• Replace any damaged clips (or pin-type retainers).
