Hyundai Santa Cruz: Blind-Spot View Monitor (BVM) / Blind-Spot View Monitor Operation

Operating switch

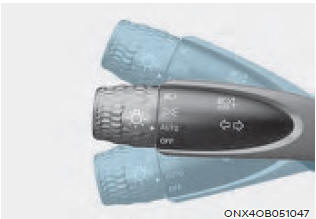

Turn Signal switch

Blind-Spot View Monitor turns on and off when the turn signal is turned on and off.

Blind-Spot View Monitor

Operating conditions

When the left or right side turn signal turns on, the image in that direction is displayed on the instrument cluster.

Off conditions

  • When the turn signal turns off, the image on the instrument cluster will turn off.
  • When the hazard warning flasher is on, Blind-Spot View Monitor will turn off, regardless of the turn signal status.
  • When other important warning is displayed on the instrument cluster, Blind-Spot View Monitor may turn off.
    Blind-Spot View Monitor (BVM)
    Blind-Spot View Monitor displays the rear blind spot area of the vehicle in the cluster when the turn signal is turned on to help change lanes. Detecting sensor [1], [2] : Surround-side view came ...

    Blind-Spot View Monitor Malfunction
    When Blind-Spot View Monitor is not working properly, or the cluster display flickers, or the camera image does not display properly, have the vehicle inspected by an authorized HYUNDAI dealer. W ...
