Setting features

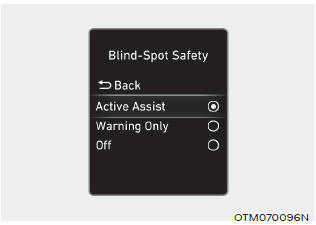

Blind-Spot Safety
With the engine on, select 'Driver > Blind-Spot Safety' from the Settings menu to set whether to use each function.
- If ‘Active Assist’ is selected, Blind-Spot
Collision-Avoidance Assist will warn
the driver with a warning message, an
audible warning and braking assist will
be applied depending on the collision
risk levels.
- If ‘Warning Only’ is selected, Blind-
Spot Collision-Avoidance Assist
will warn the driver with a warning
message and an audible warning
depending on the collision risk levels.
Braking will not be assisted.
- If ‘Off’ is selected, Blind-Spot
Collision-Avoidance Assist turns off.

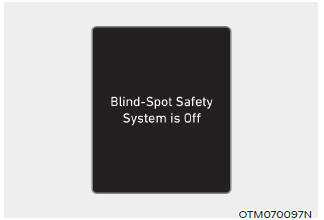

When the engine is restarted with Blind- Spot Collision-Avoidance Assist off, the ‘Blind-Spot Safety System is Off’ message appears on the cluster.
If you change the setting from ‘Off’ to ‘Active Assist’ or ‘Warning Only’, the warning light on the side view mirror blinks for three seconds.
In addition, if the engine is turned on, when Blind-Spot Collision-Avoidance Assist is set to ‘Active Assist’ or ‘Warning Only’, the warning light on the side view mirror blinks for three seconds.
WARNING
Information
If the engine is restarted, Blind-Spot Collision-Avoidance Assist will maintain the last setting.

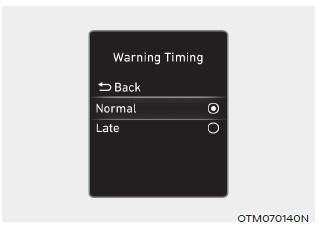

Warning Timing
With the engine on, select 'Driver Assistance > Warning Timing' from the Settings menu to change the initial warning activation time for Blind-Spot Collision-Avoidance Assist.
When the vehicle is first delivered, Warning Timing is set to ‘Normal’. If you change the Warning Timing, the Warning Timing of other Driver Assistance systems may change.

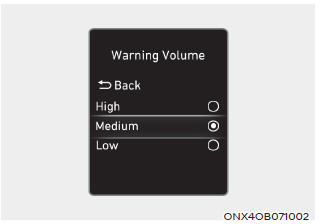

Warning Volume
With the engine on, select 'Driver Assistance > Warning Volume' from the Settings menu to change the Warning Volume to ‘High’, ‘Medium’ or ‘Low’ for Blind-Spot Collision-Avoidance Assist.
If you change the Warning Volume, the Warning Volume of other Driver Assistance systems may change.
CAUTION
